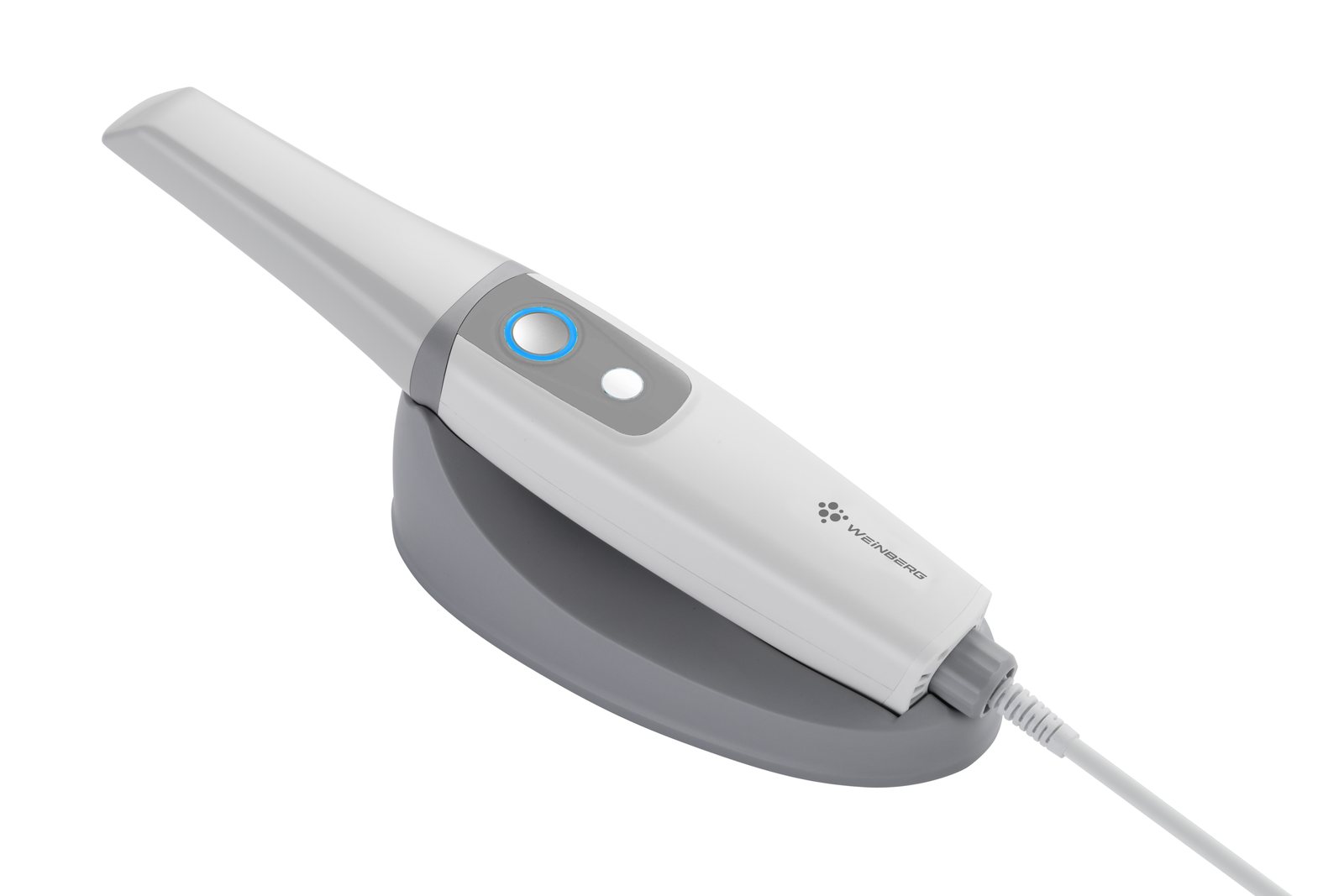

3D Intraoral Scanner (V5)

Handheld digital impression scanner for the modern dental clinic

The V5 intraoral scanner captures fast, accurate 3D digital impressions of a patient's teeth and gums — replacing messy conventional impression trays. At just 160 grams with a 16×14 mm field of view, it is built for comfortable, efficient chairside scanning and integrates directly into digital orthodontic and restorative workflows.

Weight 160 g handpiece Full-arch scan Within 60 seconds Accuracy ≤10 µm single tooth Output STL · PLY · OBJ

Request a quote All products

Why clinics choose it

Five things that set the V5 apart

The V5 is designed to make digital impression-taking faster, more comfortable, and more useful across a range of clinical cases.

Expansive field of view

A 16×14 mm field of view with up to 25 mm depth of field captures more in every pass, improving scanning efficiency.

High scanning accuracy

Accuracy of around 10 µm for a single tooth and 20 µm across a full arch supports a wide range of clinical applications.

Quicker scanning speed

AI-assisted algorithms complete a full scan in about 60 seconds.

Lightweight and ergonomic

At just 160 g, the ergonomically shaped body stays comfortable to hold even through extended scanning sessions.

Motion gesture sensor

Rotate and view the 3D model with a simple turn of the hand — no need to put the scanner down.

Eight-year product lifespan

Built as a long-term investment for the clinic, with a rated service life of eight years.

In the software

Built for digital dentistry

The V5 is more than a scanner — its software turns each scan into a tool for diagnosis, communication, and case sharing.

Orthodontic simulation

Automatic tooth alignment gives an easy preview of treatment outcomes, improving doctor-patient communication.

Oral health report

Health-report mode helps identify caries, calculus, and plaque, then generates a one-click report for the patient.

Scan body smart matching

Implant-scanning mode quickly matches scan bodies, improving the accuracy and completeness of intraoral implant data.

Impression scanning

A hybrid mode combines intraoral and silicone-impression scanning to capture complete data for challenging cases.

Edentulous arch scanning

A dedicated module retains more soft-tissue detail for edentulous arch and removable denture cases.

Case cloud sharing

Scan a QR code to share 3D models across computer and mobile — no file transfers needed, supporting remote diagnosis.

Reference

Technical specifications

Key specifications for the V5 intraoral scanner.

Handpiece size: 243 × 40 × 32 mm
Handpiece weight: 160 g (without cable)
Connection: Wired USB 3.0
Depth of field: 0 – 25 mm
Frame rate: 20 frames per second
Scanning accuracy: Single crown ≤10 µm · Full arch ≤20 µm
Scanning area: Standard 16×14 mm · Mini 12×10 mm
Imaging method: Optical continuous video capture
Output formats: STL, PLY (true color), OBJ
Anti-fog method: Fan cooling
Scanner tips: 3 standard tips, 1 mini tip, 1 protective cover
Product lifespan: 8 years

Specifications are indicative and provided for reference only. Contact us for current configuration options.

Bringing digital impressions to your clinic?

Weinberg Healthcare & Technology supplies the V5 intraoral scanner across Singapore, Malaysia, Indonesia, and Thailand. Get in touch for pricing, a demonstration, and full specifications.

Contact our team

Distributed in APAC by Weinberg Healthcare & Technology Pte Ltd.
