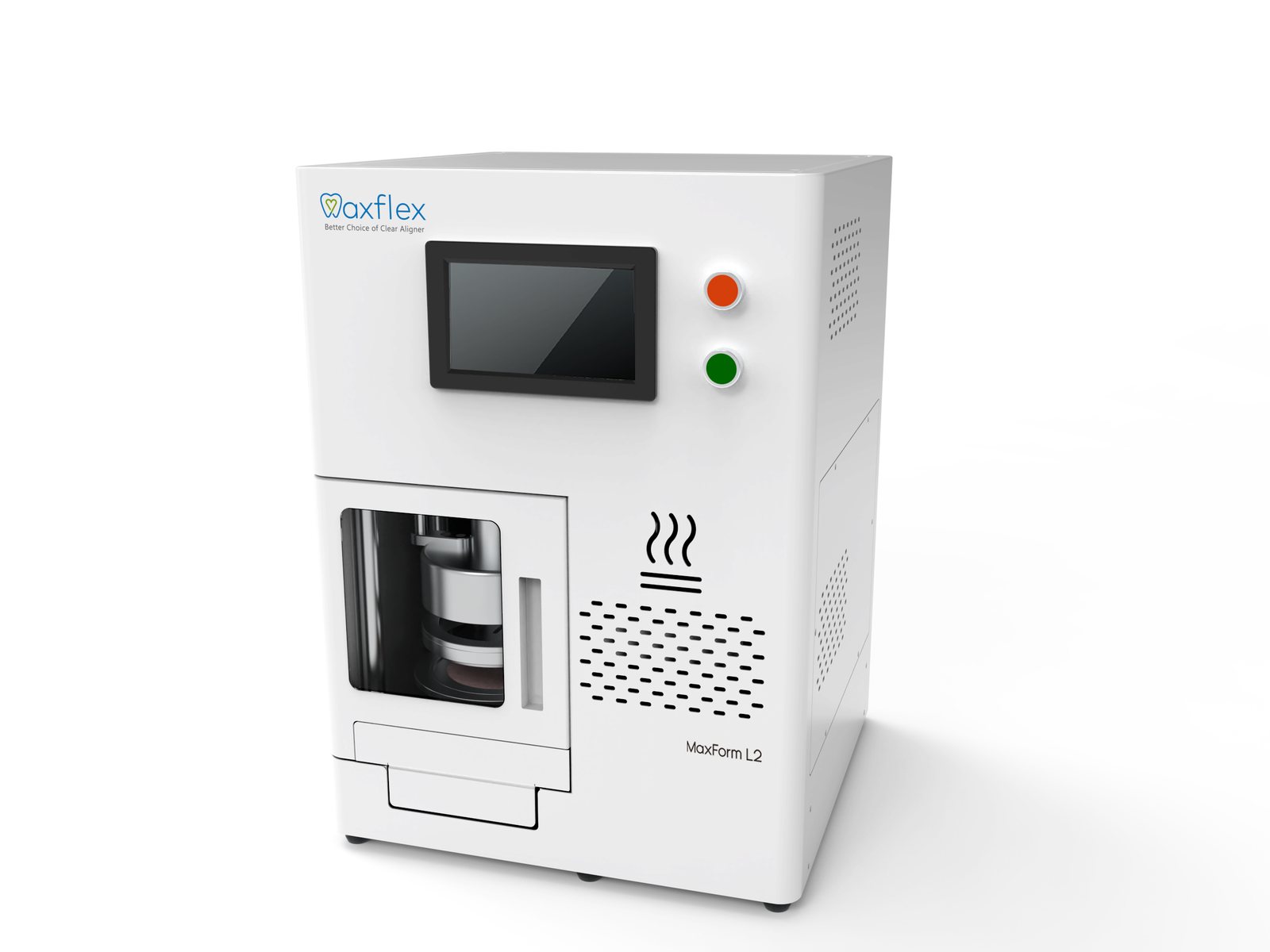

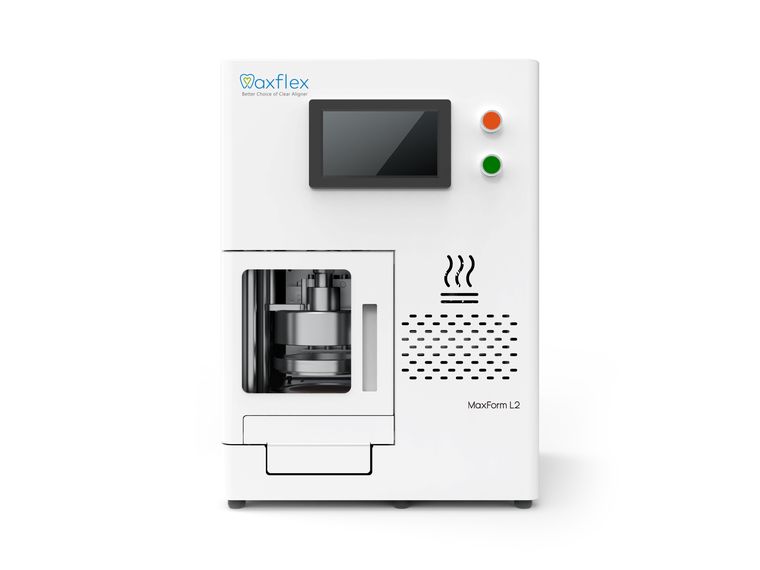

MaxForm L2 Dual-Aligner Thermoforming Machine
Automatic thermoforming machine that forms two aligners at once
The MaxForm L2 is an automatic pressure thermoforming machine that forms two aligners from a single 133 mm sheet in one cycle — roughly doubling production efficiency for aligner manufacturers. With one-button operation and a long-life ceramic heater, it is built for higher-volume labs that need consistent output.
Why labs choose it
Built for higher-volume production
The L2 was developed from years of thermoforming experience to raise output while keeping each aligner consistent.
Significant cost reduction
Forming two aligners from one 133 mm sheet raises dental-sheet utilization by 30–40% compared with single-aligner forming.
Uniform aligner thickness
Industrial CT scanning confirms the two aligners come out evenly thick across the arch.
Broad case coverage
Clinical trials have exceeded 100,000 aligners, with the dual-forming process fitting more than 95% of small and medium arches.
High thickness utilization
Optimized pressure and heat increase aligner thickness by about 0.05–0.1 mm, so thinner sheets can achieve the same result.
Long heater service life
A uniform-temperature ceramic heater lasts more than three times as long as a traditional thermoforming heater.
Automatic one-button operation
One-button start runs the whole cycle quickly, and the machine switches easily between Ø125 mm and Ø133 mm sheet kits.
Configurable

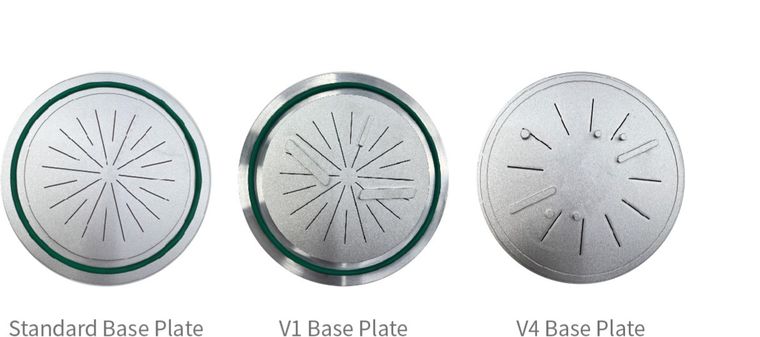

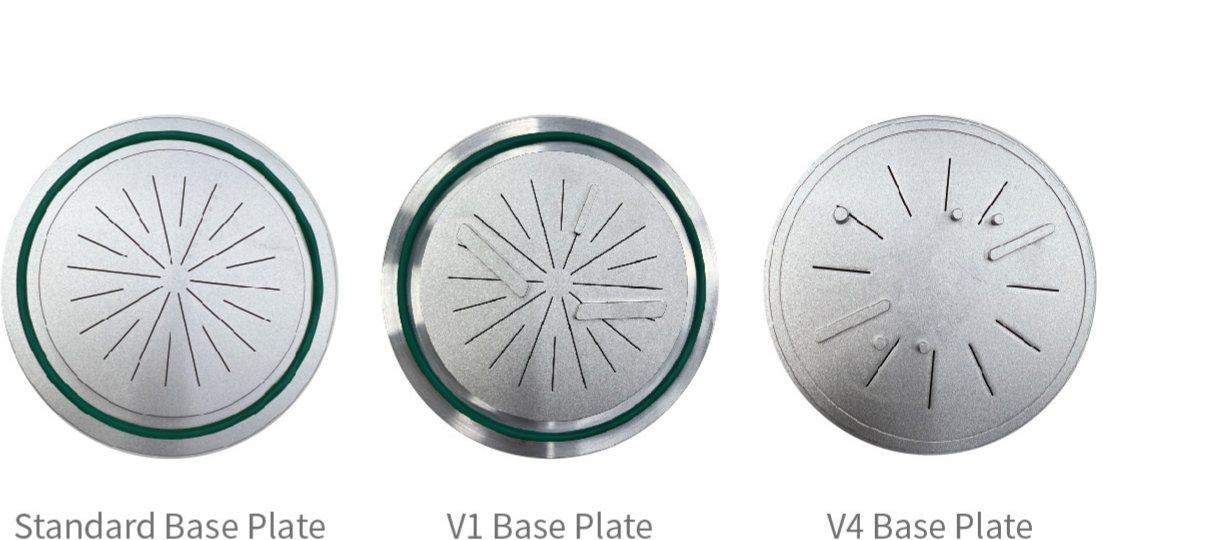

Three base plate options
The L2 ships with interchangeable base plates so the machine can be matched to different sheet handling needs.
Reference
Equipment parameters
Key parameters for the MaxForm L2 thermoforming machine.
- Input
- 220 VAC, 50 Hz
- Pressure
- 6.0 – 6.5 bar
- Power
- 1000 W
- Heating power
- 800 W
- Device dimensions
- 450 × 450 × 620 mm
- Device net weight
- 75 kg
- Control method
- Touch screen and physical buttons
- Supported sheet size
- Round, Ø125 mm and Ø133 mm
- Package dimensions
- 560 × 550 × 830 mm
- Package weight
- 90 kg
Specifications are indicative and provided for reference only. Contact us for current configuration and base plate options.
Scaling up aligner production?
Weinberg Healthcare & Technology supplies the MaxForm L2 across Singapore, Malaysia, Indonesia, and Thailand. Contact us for pricing, a walkthrough, and full specifications.
Contact our teamDistributed in APAC by Weinberg Healthcare & Technology Pte Ltd.
