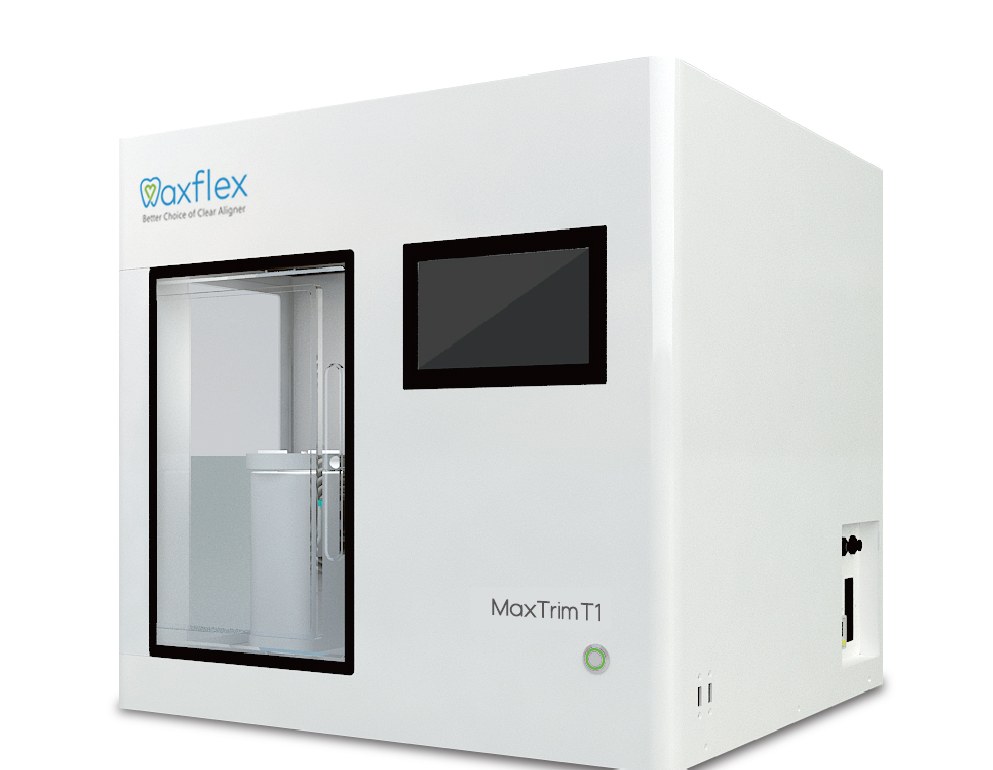

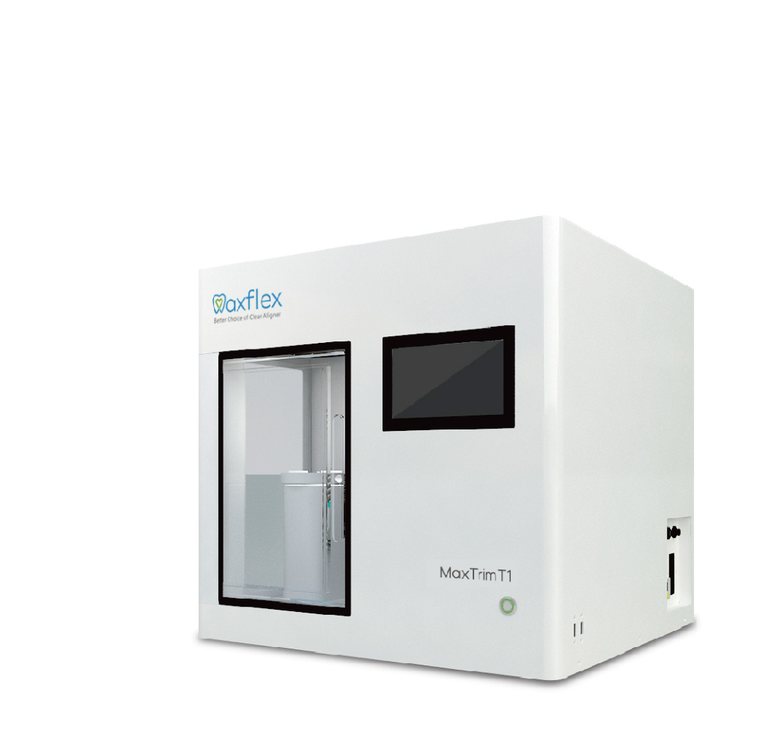

MaxTrim T1 Aligner Trimming Machine
Five-axis linkage trimming machine for clear aligners and retainers
The MaxTrim T1 is a five-axis linkage trimming machine that automatically cuts clear aligners and retainers along the gingival line, replacing slow manual trimming. Whole-disc vacuum adsorption holds the sheet while Maxflex’s OrthoCurve gingiva-line software guides the cut — producing burr-free edges on PETG, TPU, and multi-layer sheets in around 30 seconds at ±0.01 mm accuracy.
Why it performs
Automatic trimming, lab-grade edges
The T1 takes clear-aligner finishing off the bench and into a precise, repeatable machine cycle — with less manual labor and cleaner results.
Self-executing automation
Replaces traditional manual cutting machines, lifting production efficiency and giving every appliance a consistent finish.
OrthoCurve gingiva-line software
Automatically generates the gingival line and lets you fine-tune curvature and height in seconds to match any case.
Burr-free trimming
Edges come away with almost no burrs across PETG, TPU, and multi-layer materials, cutting down on hand polishing.
Precise and stable
±0.01 mm equipment accuracy with whole-disc vacuum adsorption keeps the sheet flat for repeatable cuts.
Easy and safe operation
One-second vacuum loading, and trimming runs inside a closed lock-up chamber to keep the operator safe.
Wide compatibility
Works with most mainstream orthodontic design software worldwide and a broad range of sheet thicknesses and types.
Reference
Equipment parameters
Key parameters for the MaxTrim T1 five-axis aligner trimming machine.
- Equipment type
- Five-axis linkage
- Exterior
- White
- Material quality
- Aviation aluminum
- Electric motor
- High-performance servo motor
- Gas source
- Independent air source
- XYZ positioning accuracy
- ±0.01 mm
- XYZ repositioning accuracy
- ±0.02 mm
- Spindle speed
- 30,000 rpm
- Spindle power
- 500 W
- Display
- 7-inch smart touch screen
- Material fixation
- Negative-pressure adsorption
- Trimming time
- 25–30 s/pc
- Equipment size (L×W×H)
- 570 × 530 × 535 mm
- Net weight
- 85 kg
Compatible with PETG, TPU, and multi-layer sheets from 0.5–2.0 mm. Specifications are indicative and for reference only.
