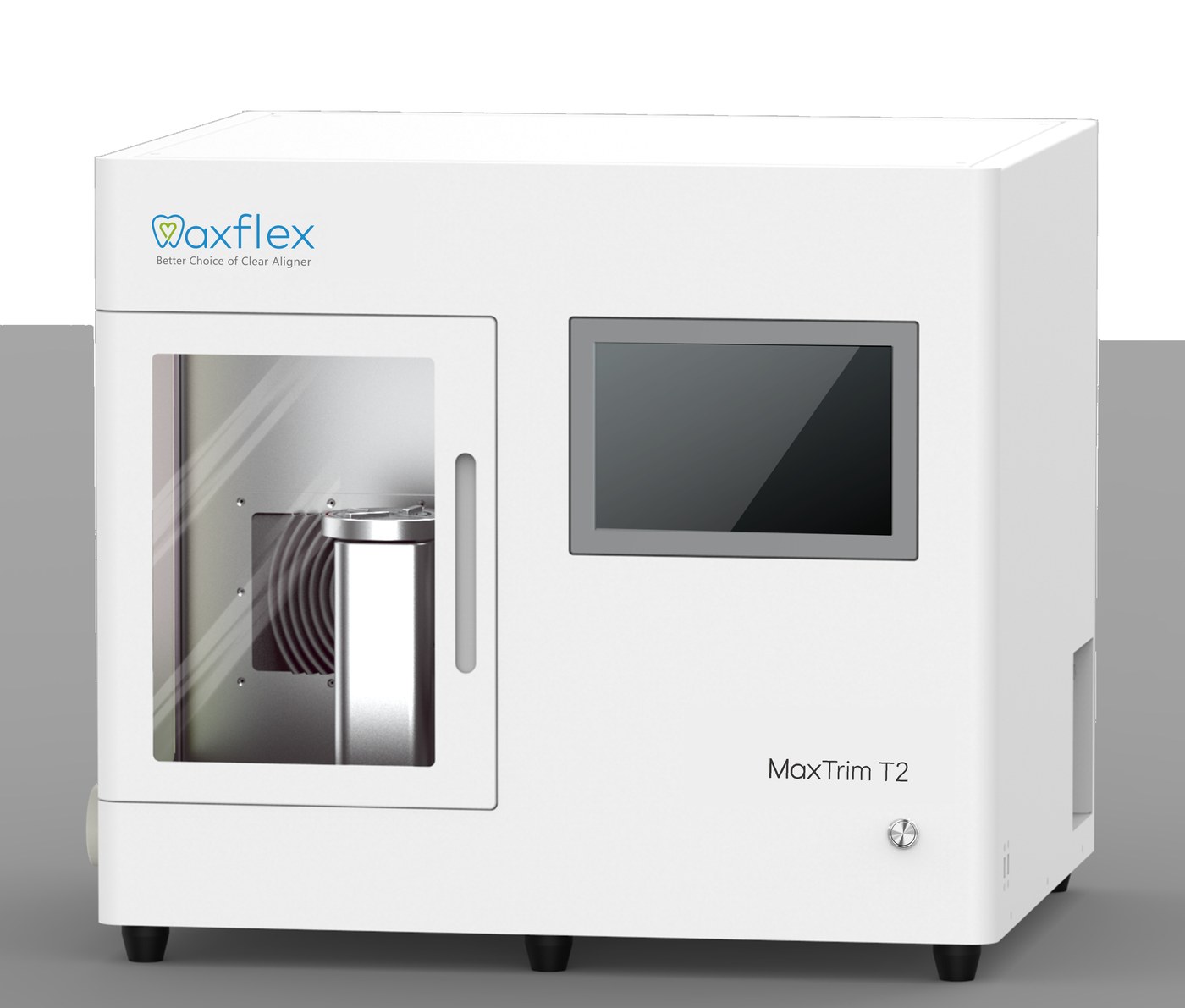

MaxTrim T2 Dual-Model Aligner Trimming Machine

Five-axis dual-model trimming machine for high-volume aligner production

The MaxTrim T2 is a five-axis linkage trimming machine that finishes two models at once — completing a dual-model cycle in under a minute. Paired with a dual-model thermoforming machine it can cut material cost by up to 40%, while OrthoCurve dual-model software and MaxScan visual recognition let operators load models in any orientation for fast, error-free, burr-free trimming.

Trimming time 25–30 s/pc Trimming method Single / dual Spindle speed Up to 60,000 rpm Positioning accuracy ±0.01 mm

Request a quote All products

Why it performs

Two models per cycle, lower cost per aligner

The T2 is built for labs producing aligners at volume — doubling throughput per cycle while keeping edges clean and operation simple.

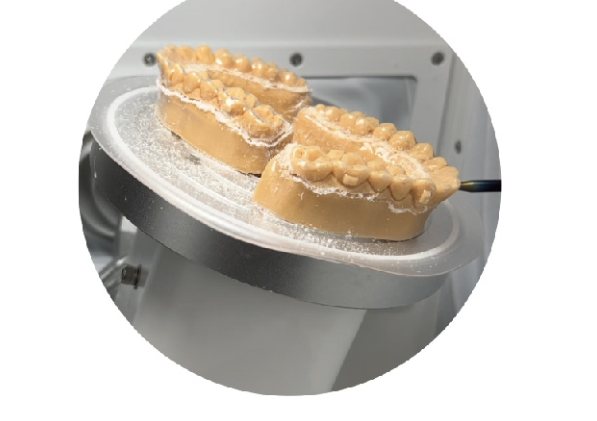

Dual-model trimming

Finishes two aligners within one minute — with a dual-model thermoforming machine, material cost drops by up to 40%.

MaxScan visual recognition

Place any two models from the same case in any orientation; MaxScan identifies them and generates the processing file, avoiding manual errors.

OrthoCurve dual-model software

Automatically generates dual-model trimming lines with rapid adjustment, and matches most orthodontic design software.

Burr-free precision

±0.01 mm accuracy with edges that come away almost burr-free, reducing after-polishing and rework.

One-second vacuum loading

A groove plus vacuum adsorption fixes the sheet in about one second for quick, stable, repeatable setup.

Wide compatibility

Handles 0.5–2.0 mm sheets in PETG, TPU, and single-layer, double-layer, and composite materials.

Reference

Equipment parameters

Key parameters for the MaxTrim T2 five-axis dual-model aligner trimming machine.

Equipment type: Five-axis linkage
Exterior: White
Material quality: Aviation aluminum
Trimming method: Single / dual
Trimming positioning accuracy: ±0.01 mm
Spindle speed: Max 60,000 rpm
Spindle power: 800 W
Display: 10.1-inch LCD touchscreen
Aligner fixation: Groove + vacuum adsorption
Trimming time: 25–30 s/pc
Equipment size (L×W×H): 670 × 580 × 585 mm
Net weight: 100 kg
Matching table: 1080 × 600 × 870 mm
Table net weight: 105 kg (incl. vacuum & dust collector)

Compatible with PETG, TPU, and single-, double-layer, and composite sheets from 0.5–2.0 mm. Specifications are indicative and for reference only.

Running a high-volume aligner lab?

Weinberg Healthcare & Technology supplies the MaxTrim T2 across Singapore, Malaysia, Indonesia, and Thailand. Contact us for pricing, dual-model workflow advice, and full specifications.
